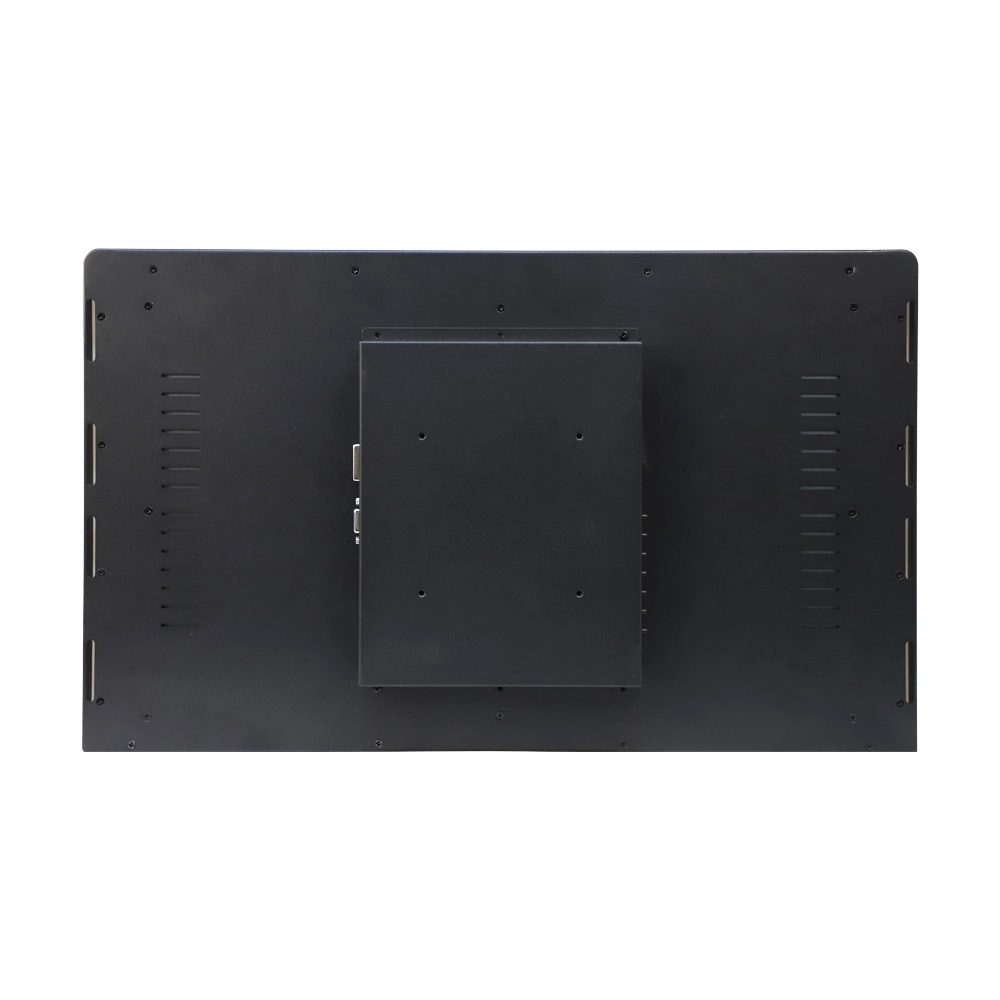

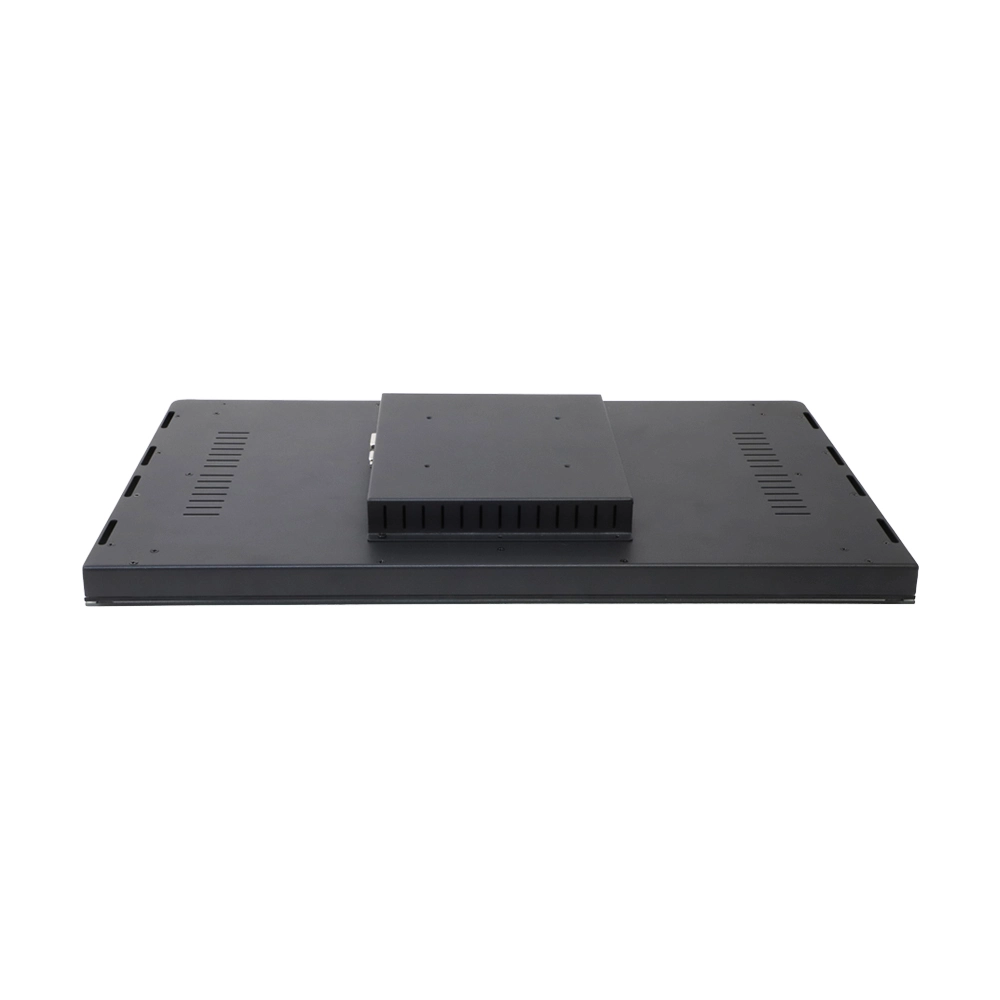

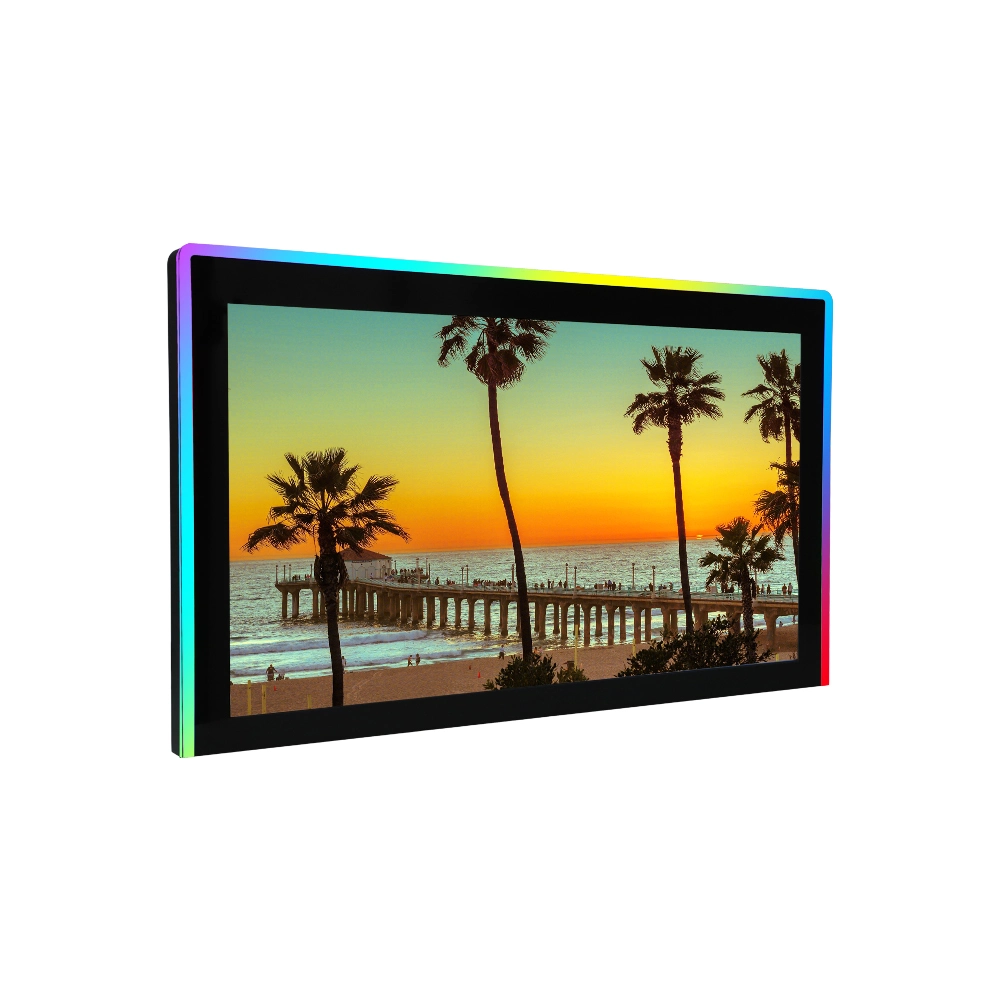

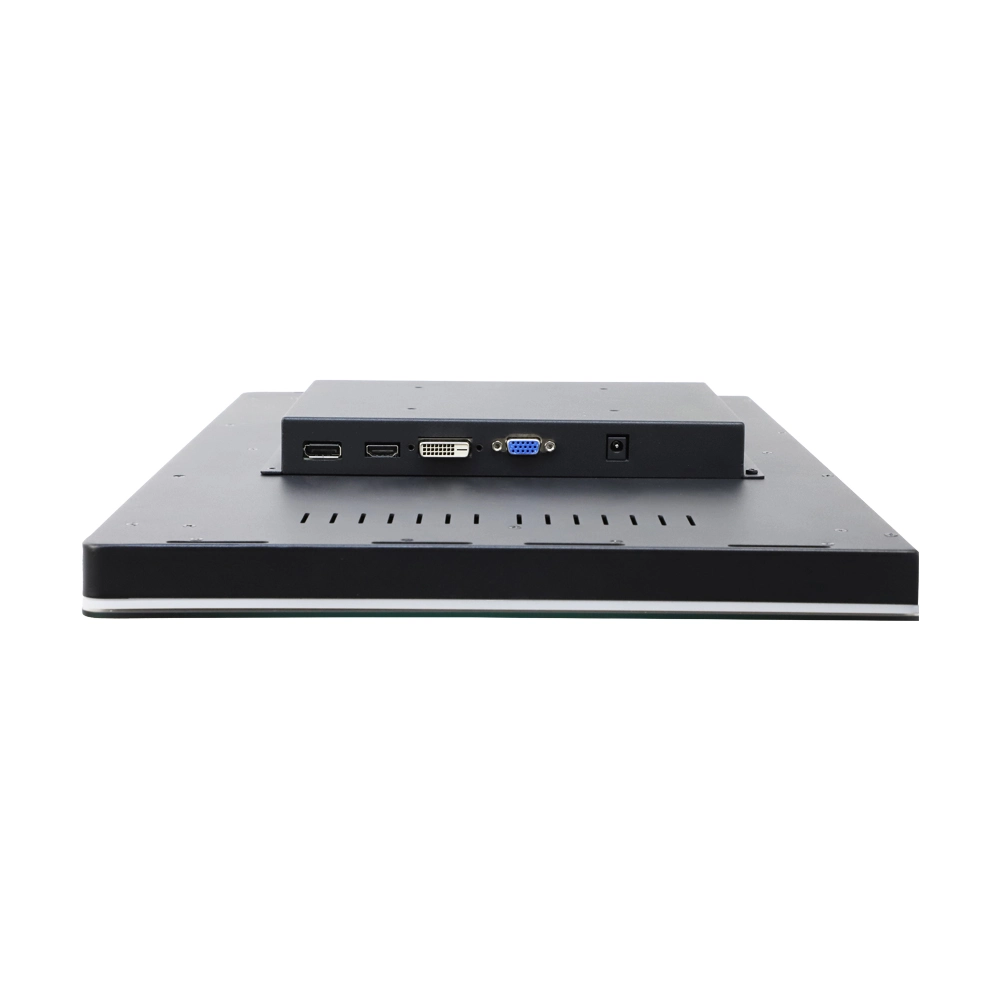

3-Side LED Edge-Lit Open Frame Monitor with Dynamic RGB Lighting

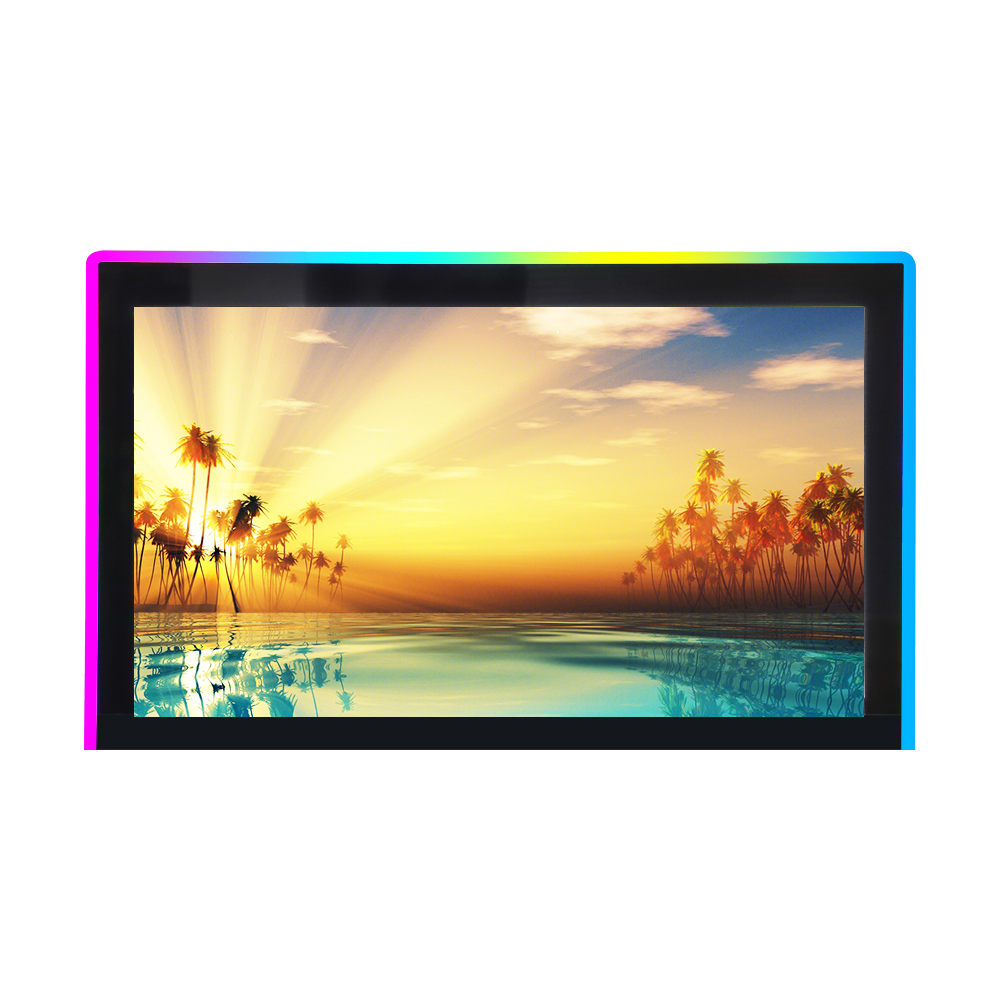

Kontech’s 3-Side LED Edge-Lit Open Frame Monitor is a commercial LCD display designed with integrated LED lighting along the top and two side edges, while the bottom edge remains free of lighting.

This unique three-sided LED design creates an attractive visual frame while maintaining a clean lower edge for equipment integration. The display is ideal for gaming machines, entertainment equipment, interactive kiosks, retail displays, and other customized commercial applications.

As a professional Open Frame Monitor manufacturer, Kontech provides flexible OEM/ODM customization, including screen size, brightness, touchscreen, LED colors, lighting effects, mounting structure, and interfaces.

Design Your Solution with KONTECH

Open Frame Monitor application scenarios
Open Frame Monitor application scenarios
Open Frame Monitor game venue application scenario
Open Frame Monitor application scenarios

Industrial

Self-Service

Gaming

Healthcare

Kontech LED Edge-Lit Open Frame Monitor Key Features

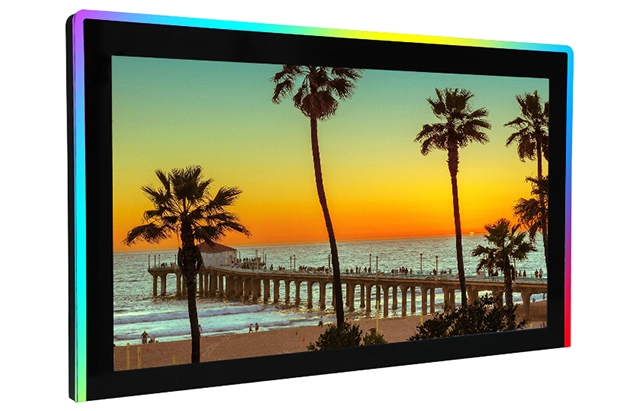

Flexibility for Your Install

LED Lighting on Top and Both Sides

Unlike conventional LED edge-lit displays, this Open Frame Monitor features LED lighting on three sides — top, left, and right — with no LED lighting along the bottom edge.

This configuration provides a distinctive illuminated frame while keeping the lower edge clean and unobstructed.

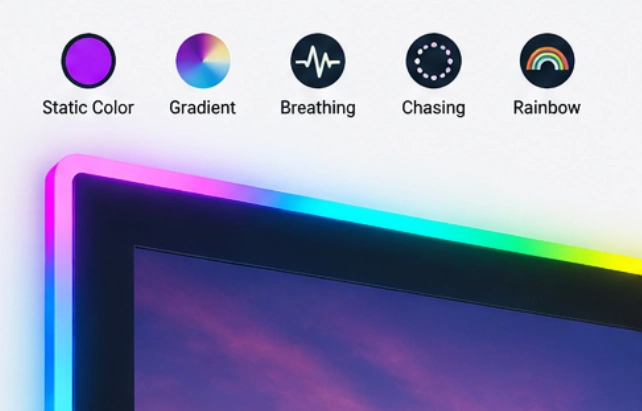

Dynamic RGB LED Lighting Customizable Colors & Lighting Effects

The three-side LED lighting can be customized with RGB colors and different lighting effects according to project requirements.

Available options may include:

  • RGB multi-color lighting
  • Static lighting
  • Dynamic color changing
  • Gradient lighting
  • Chasing light effects
  • Custom lighting sequences
Low Power Consumption

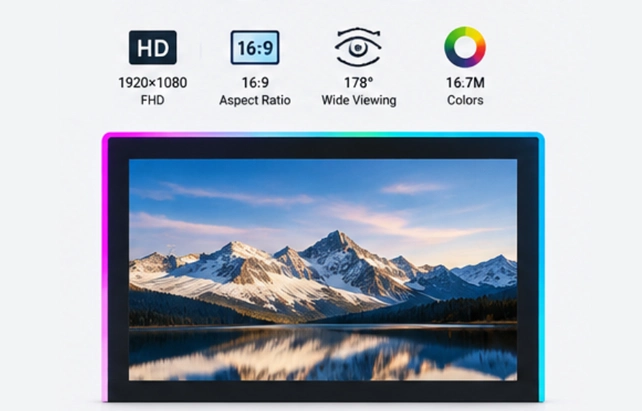

Outstanding Image Quality

Full HD LCD Display

The Open Frame Monitor uses a high-quality LCD panel to deliver clear images and stable visual performance.

Typical display features include:

  • Full HD 1920 × 1080 resolution
  • 16:9 aspect ratio
  • Wide viewing angle
  • High contrast
  • Clear image details
  • Accurate color reproduction

Open Frame Design for Embedded Applications

The open-frame construction allows the monitor to be integrated directly into customized machines, cabinets, kiosks, and other equipment.

Without a conventional outer housing, manufacturers can design the surrounding enclosure according to their own product structure.

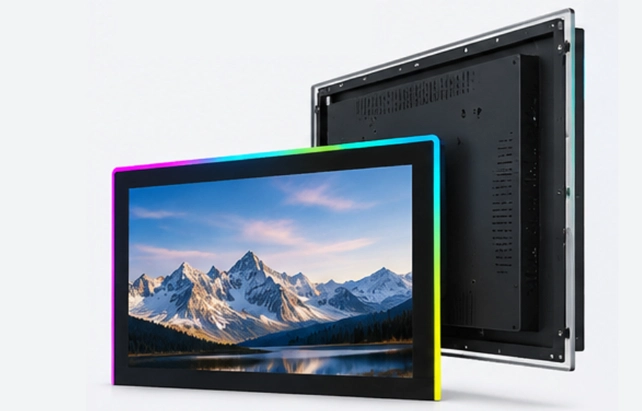

Perfect protection
Perfect protection

Optional Touchscreen Function

For interactive applications, the PoE Open Frame Monitor can be equipped with touchscreen technology.

Available options include:

  • PCAP capacitive touch
  • Resistive touch
  • Multi-touch support
  • USB touch interface
  • Anti-glare surface
Technical Specifications
Display Size
32 Inch
LED Lighting
RGB LED Optional
ResolutionFHD / 4K
Aspect Ratio16:9
BrightnessCustomized
PoESupported
TouchscreenOptional
HDMIOptional
MountingOpen Frame / Panel Mount
Viewing AngleWide Viewing Angle
ApplicationIndustrial / Commercial / OEM

Applications of Open Frame Monitors

ideal for self-ordering, ticketing,check-in, payment kiosks and information terminals

Perfect for machine control,factory automation, production
lines and process monitoring.

Used in POS systems, digital signage, interactive displays and
retail information systems.

Applied in patient monitoring,diagnostic devices, medical carts and laboratory equipment.

Used in public transportation,information kiosks, ticket machinesand navigation systems.

Applied in ATM machines, bankingterminals, cash recycling systemsand financial kiosks.

FAQ

A 3-Side LED Edge-Lit Open Frame Monitor is an open-frame LCD display featuring LED lighting on the top, left, and right edges, while the bottom edge has no LED lighting.
Yes. PCAP capacitive and resistive touchscreen options are available.
Yes. The LED edge lighting can be designed with dynamic or chasing light effects, depending on the required LED configuration and control system.

Yes. Kontech supports OEM and ODM customization, including display size, brightness, touchscreen, interfaces, mounting structures, cables, and mechanical design.

Open Frame Touch Screen Monitor From 10 to 43-inches

Designed for OEM & B2B Projects

Kontech provides professional Open Frame Monitor OEM/ODM services for system integrators, equipment manufacturers, distributors, and commercial display solution providers.

Customization

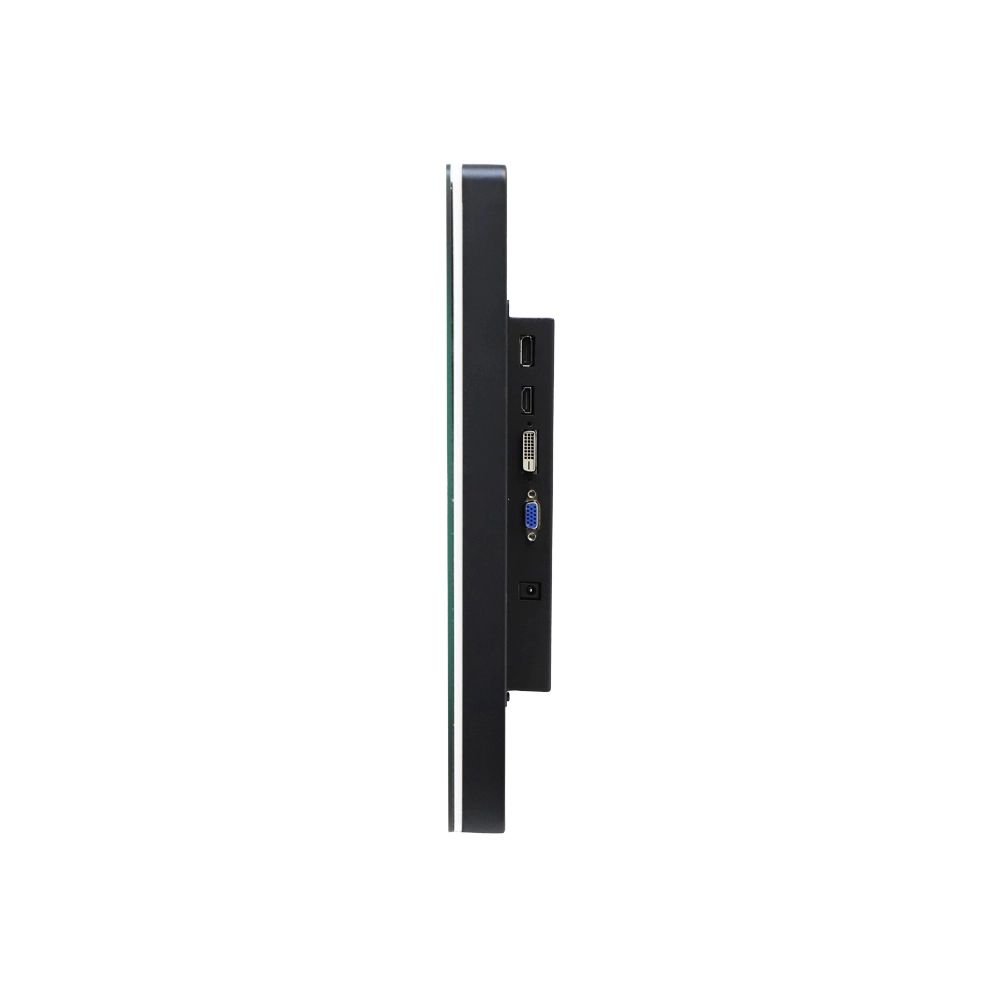

Kontech offers a wide range of customization options to meet your requirements, including display size, panel brightness, resolution, customer logo, display ports including VGA, DVI and HDMI, and more. It can also be customized to be compatible with various operating systems, including Windows, Linux and Android OS, and the power plug can also be selected according to different styles of each country. Please contact our team for more information.
