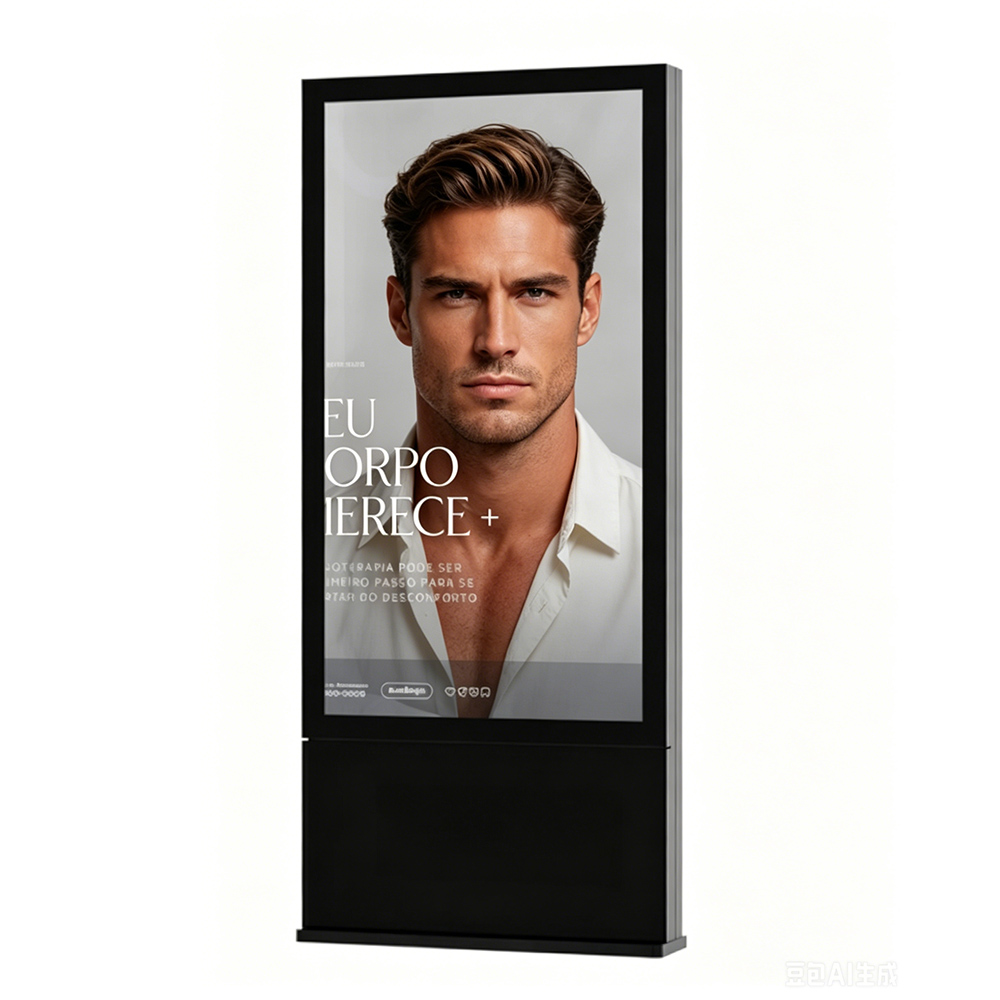

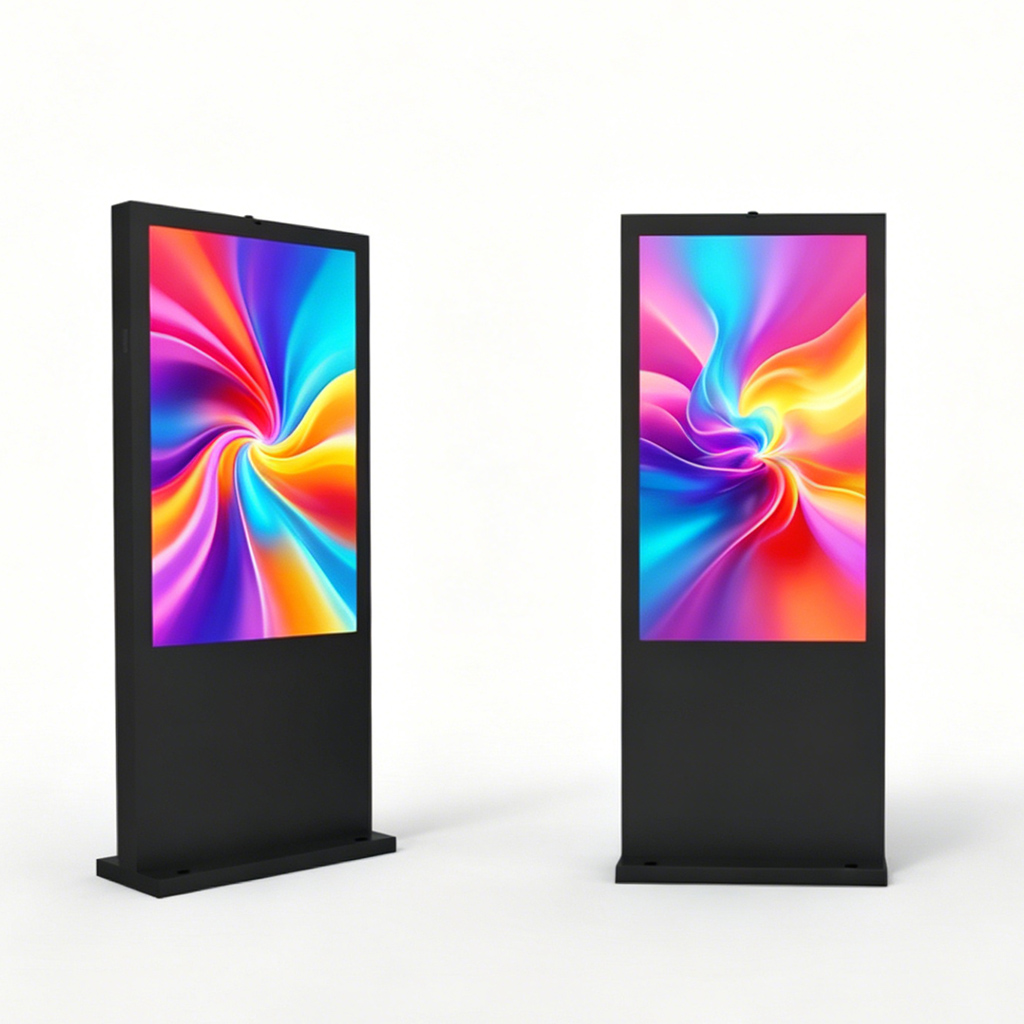

Outdoor Floor Standing Digital Signage

Specially design for outdoor advertising purpose at drive through ,bus station,airport etc areas.

High-bright aluminum frame design
10 points PCAP/Infrared Touch Screen Optional
3-5MM super tough tempered glass
Support Android / windows /Linux system

Product Features

1500-3000nits

high brightness optional

IP65 Waterproof Design

Touch

PCAP touch/ Infrared touch Optional

24 / 7

Working Time

Workable for All Weather Environment

Freestanding outdoor digital signage is made of galvanized sheet material with special waterproof design, which can mantain long working time in outdoor environment. IP65 design for all-weather environment.

High Brightness up to 3000nits

1500 nits

3000 nits

Optional to have PACP Touch Feature

No Black Out Under Direct Sun

Kontech outdoor lcd display build in Fans cooling system, no black out under direct sun.

AG or AR Protection Glass Optional

Auto Brightness control

Optimize brightness control while reducing display operating expenses and power consumption with an automatic brightness sensor.

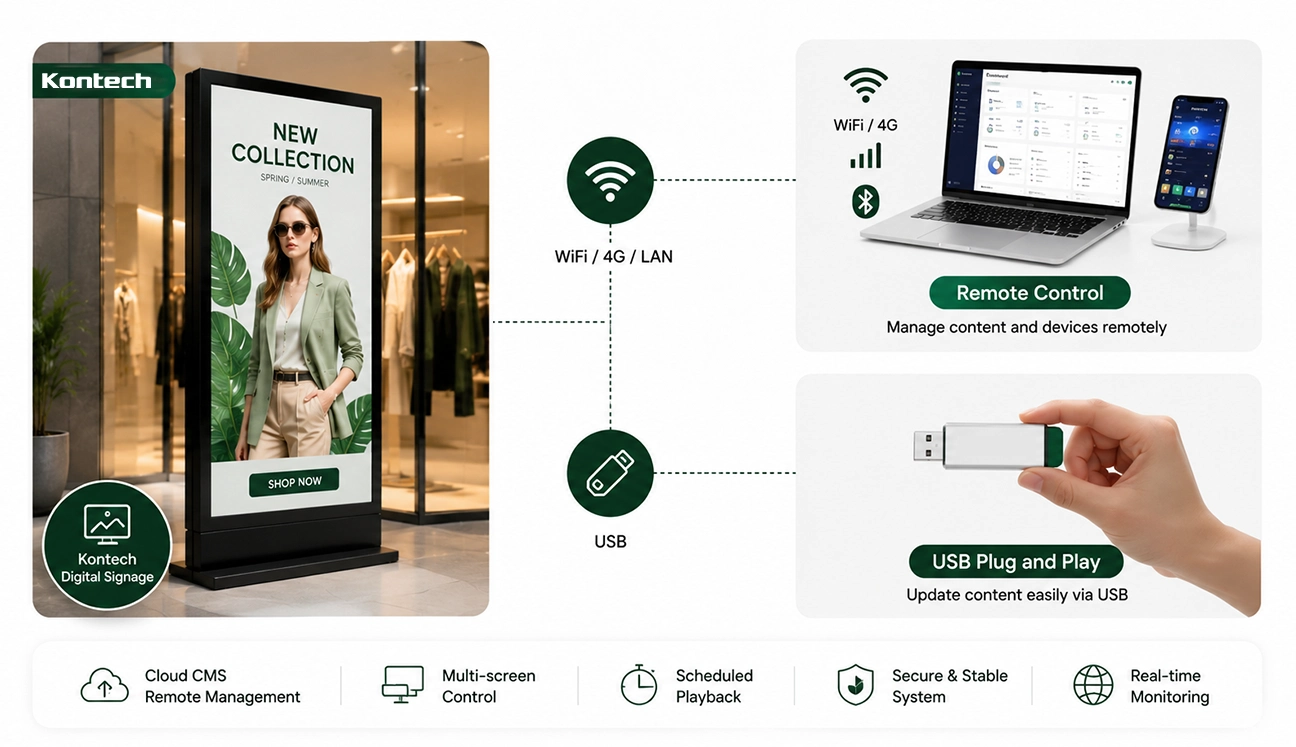

Support Android / Windows / Linux system

Application

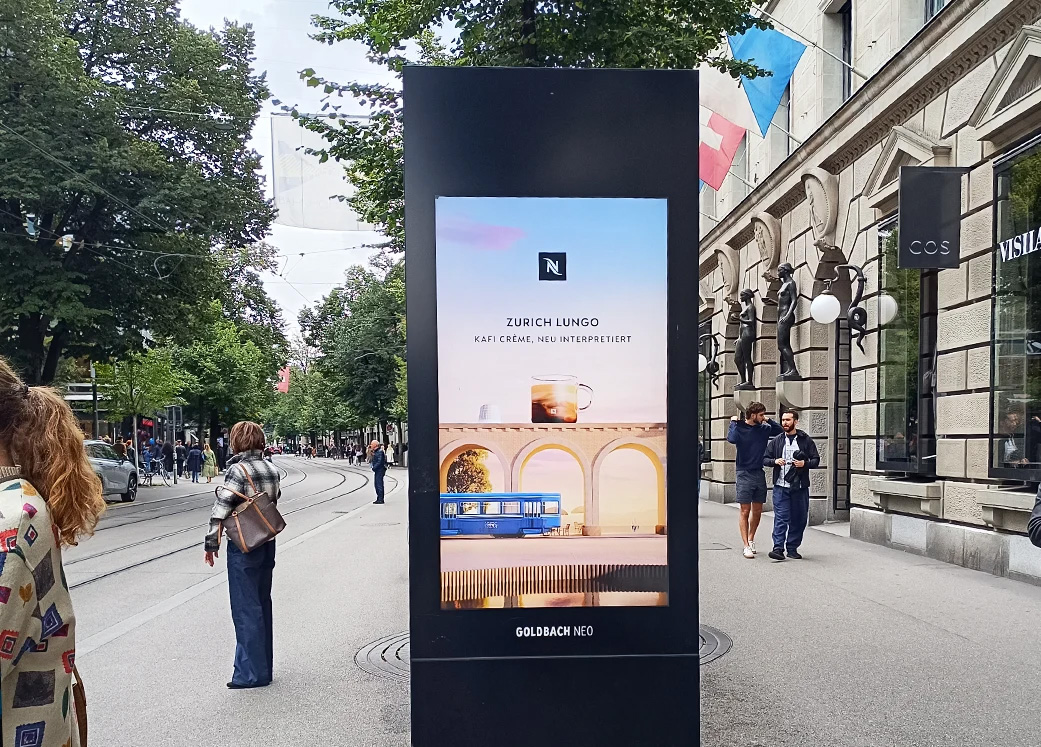

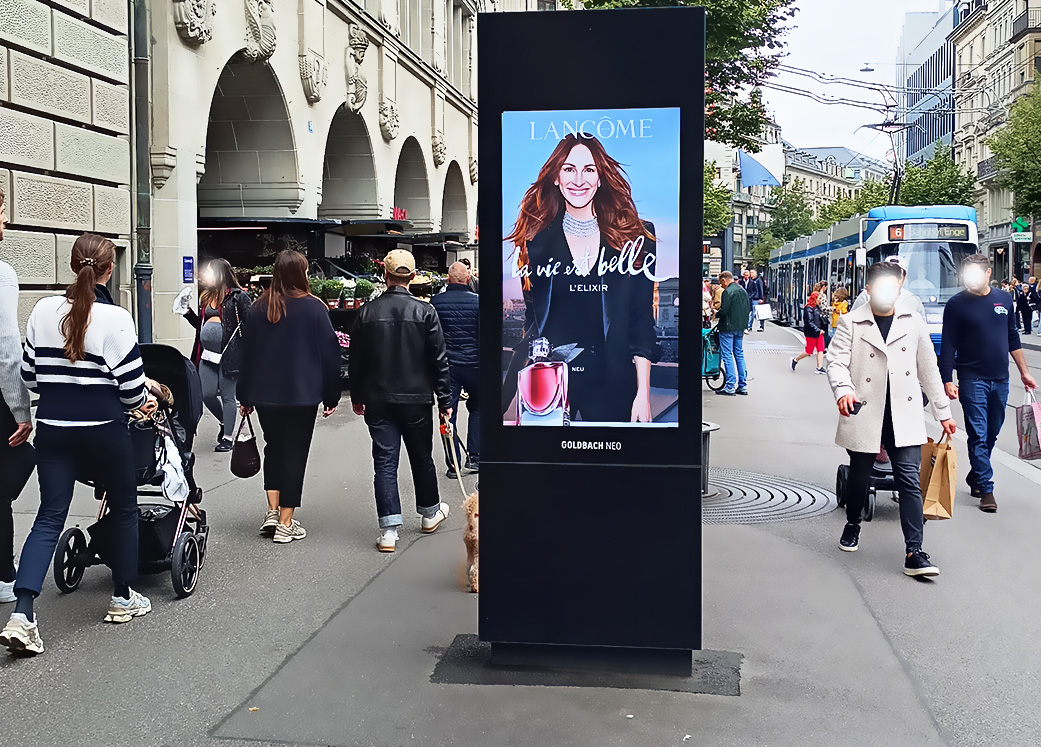

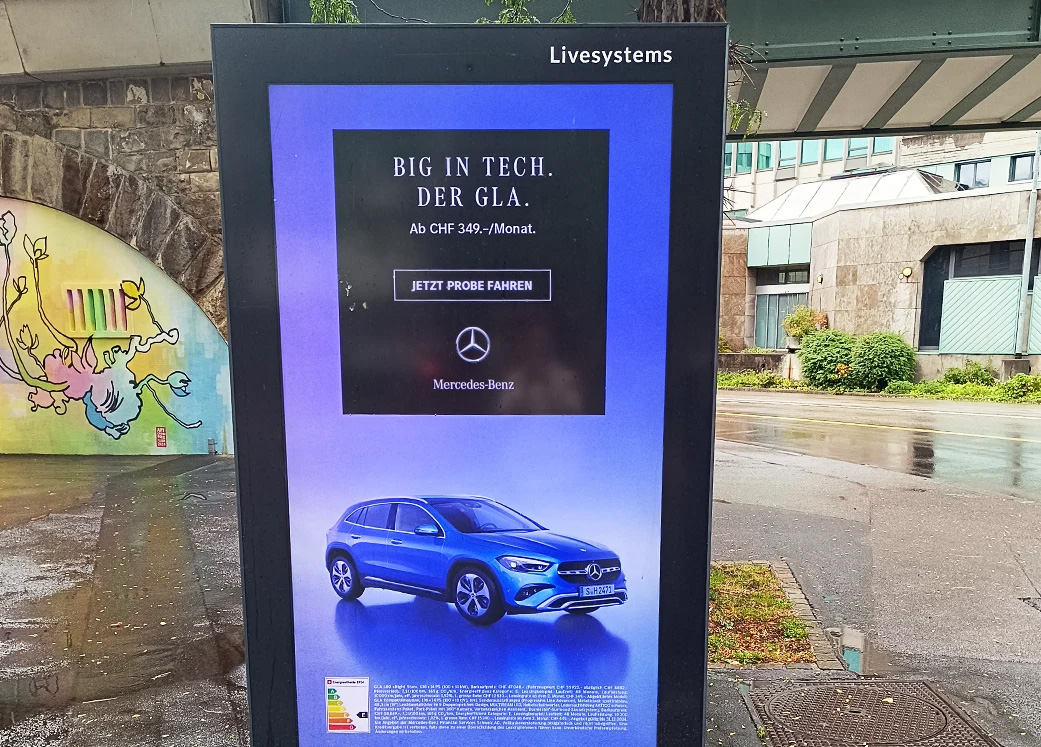

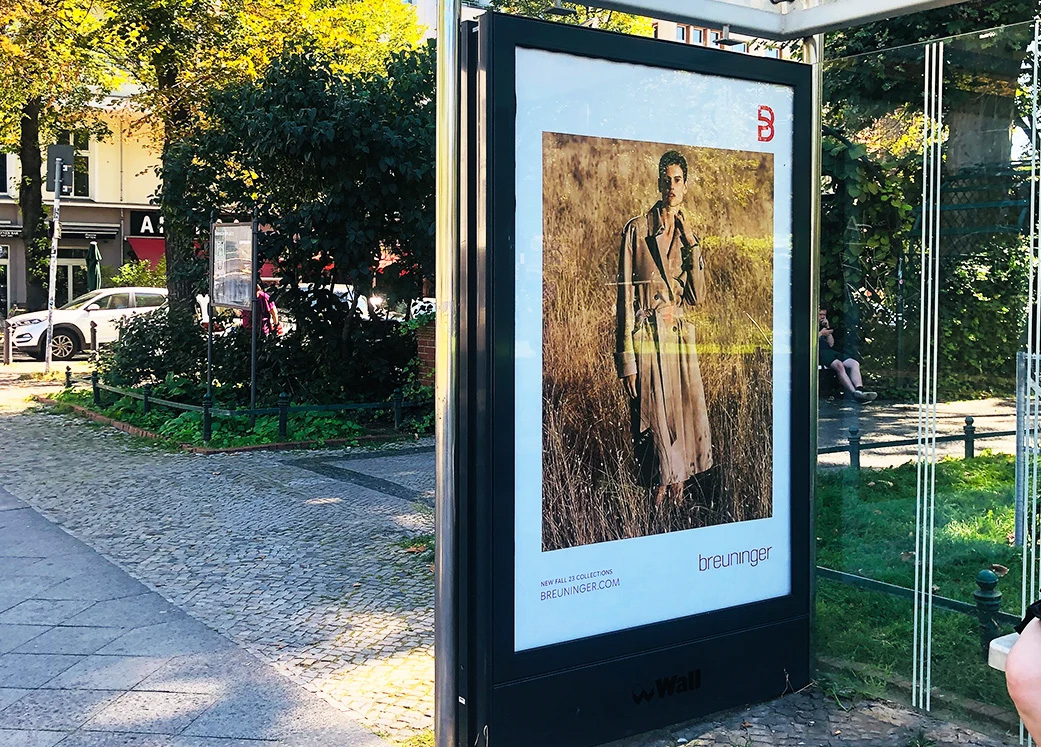

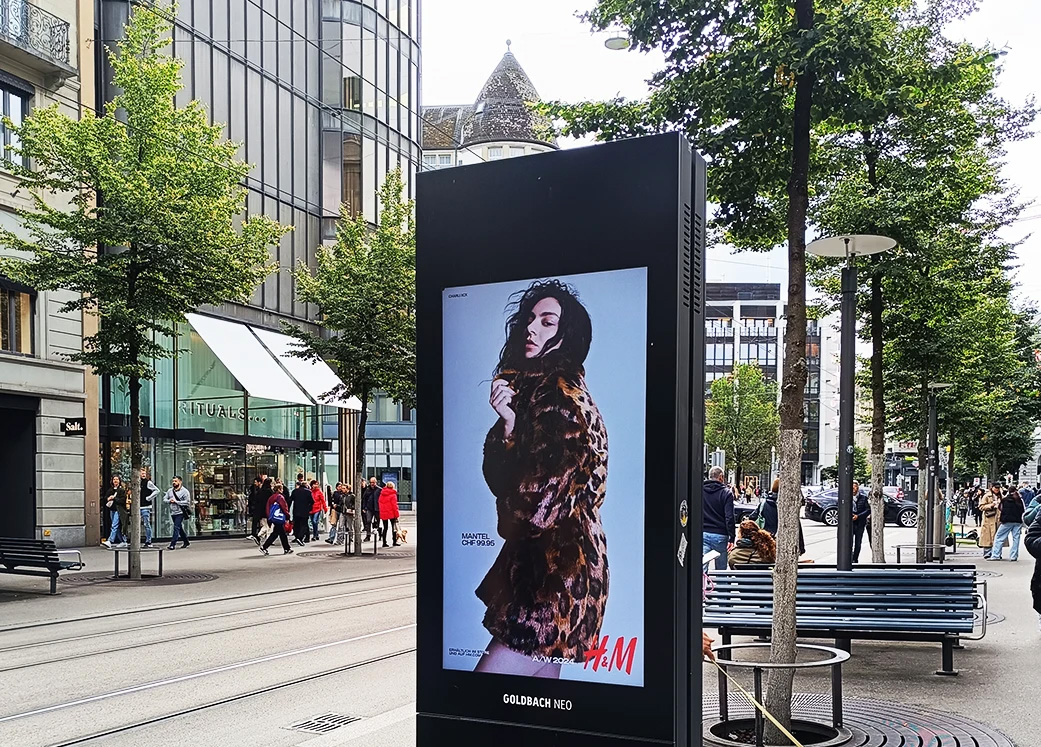

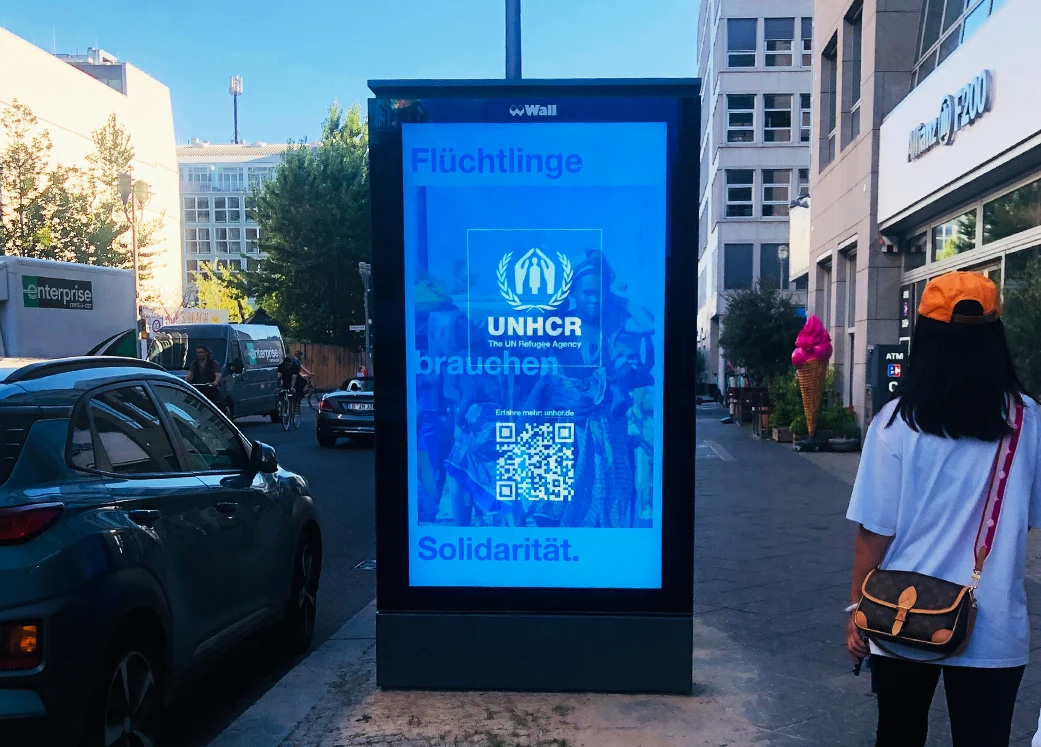

Kontech Outdoor Floor Standing Digital Signage can be widely used in bus stations ,airport , school,drive throughs and any other outdoor areas require professional displays.

Specifications

Free Standing LCD Display

Model		OD32FAH	OD43FAH	OD49FAH	OD55FAH	OD65FAH	OD75FAH	OD86FAH
LCD Panel	Screen Diagonal	32inch	43inch	49inch	55inch	65inch	75inch	86inch
	Resolution (H x V)	1920×1080	1920×1080/3840×2160	1920×1080/3840×2160	1920×1080/3840×2160	3840×2160	3840×2160	3840×2160
	Contrast(Typical)	3000:1	3000:1	3000:1	3000:1	4000:1	4000:1	4000:1
	Brightness(Typical)	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2
	Display Color	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M
	Response Time(Typical)	6.5ms	6.5ms	8ms	6.5ms	8ms	6.5ms	8ms
	View Angles LR,UD(CR>10)	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°
	Backlight rated hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours
Optional Touch		10 points capacitive touch
System		Android 7.1
Configuration	CPU	ARM Cortex A17 Quad- Core
	GPU	Mali T764 Quad-Core
	RAM	2G DDR
	ROM	8GB FLASH
	LAN	10/100M
	Support	microSD/TF card 32GB
	WIFI	WIFI802.11b/g/n

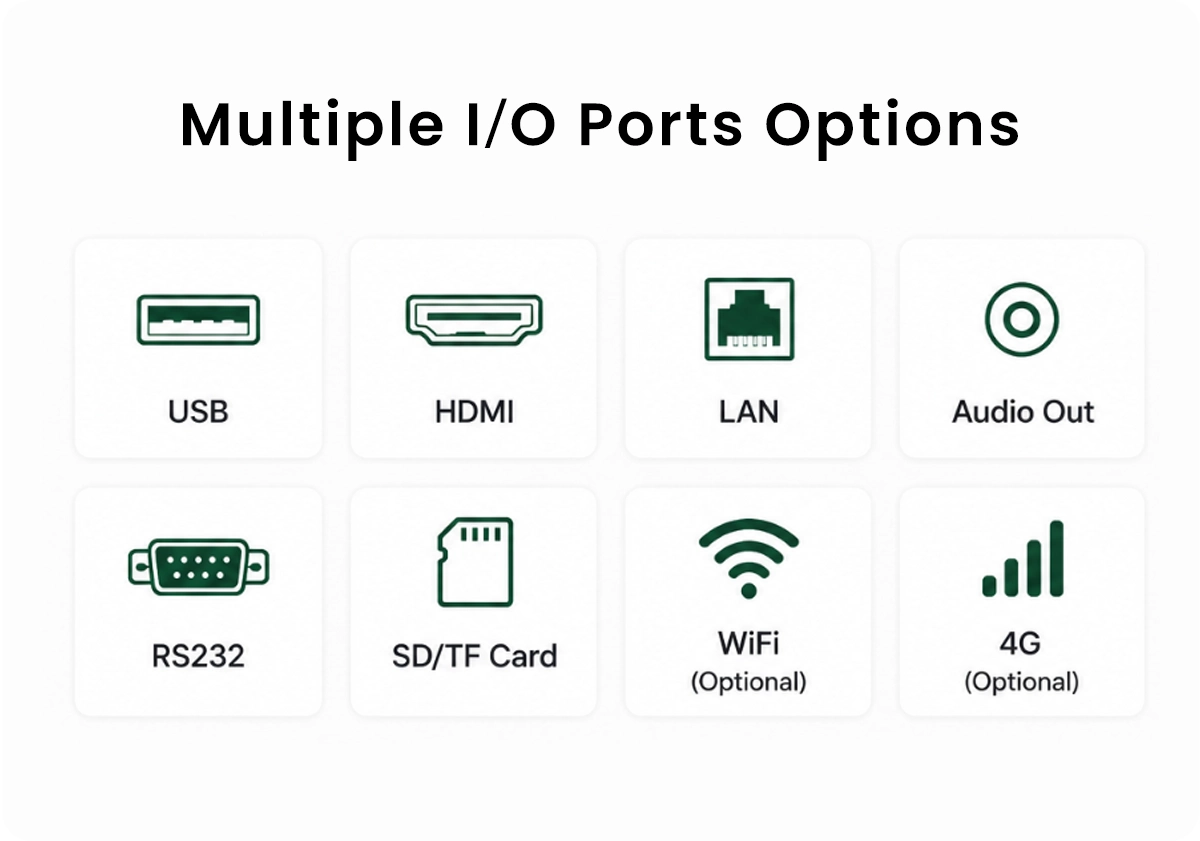

Interface	1	2 xUSB
	2	1 X HDMI out 1 X HDMI in
	3	1 X Wifi
	4	1 X RJ45
	5	1 X SD/TF card slot
Support	Video	AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG
	music	MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
	photo	JPG、JPEG、BMP、PNG、GIF
Cabinet	Material	Aluminum frame +Metal cabinet with outdoor power painting
	Color	Black, White, Grey ,customized
	Safety glass	5mm AG front glass
	Installation	Floor stand
	Dimensions	1558485119mm (without stand)	1800530119mm (without stand)	1933605119mm (without stand)	2068681119mm (without stand)	2287804119mm (without stand)	2509929119mm (without stand)	27641067119mm (without stand)
	AC Power Range	100V-240V
Operating Condition	Working Temperature	-20 ~50℃
Operating Condition	Working Humidity	10~100% RH
Feature	On Screen Display	YES: English, etc.
Feature	Power On when plugged in	YES
Built-in Speaker		2 X10W
Accessory	Power Cable	YES
Accessory	Stand	YES

Outdoor LCD Display

Model		OD32FAH	OD43FAH	OD49FAH	OD55FAH	OD65FAH	OD75FAH	OD86FAH
LCD Panel	Screen Diagonal	32inch	43inch	49inch	55inch	65inch	75inch	86inch
	Resolution (H x V)	1920×1080	1920×1080/3840×2160	1920×1080/3840×2160	1920×1080/3840×2160	3840×2160	3840×2160	3840×2160
	Contrast(Typical)	3000:1	3000:1	3000:1	3000:1	4000:1	4000:1	4000:1
	Brightness(Typical)	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2	1500-3000cd/m2
	Display Color	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M
	Response Time(Typical)	6.5ms	6.5ms	8ms	6.5ms	8ms	6.5ms	8ms
	View Angles LR,UD(CR>10)	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°
	Backlight rated hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours
Optional Touch		10 points capacitive touch
System		Android 7.1
Configuration	CPU	ARM Cortex A17 Quad- Core
	GPU	Mali T764 Quad-Core
	RAM	2G DDR
	ROM	8GB FLASH
	LAN	10/100M
	Support	microSD/TF card 32GB
	WIFI	WIFI802.11b/g/n
Interface	1	2 xUSB
	2	1 X HDMI out 1 X HDMI in
	3	1 X Wifi
	4	1 X RJ45
	5	1 X SD/TF card slot
Support	Video	AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG
	music	MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
	photo	JPG、JPEG、BMP、PNG、GIF
Cabinet	Material	Aluminum frame +Metal cabinet with outdoor power painting
	Color	Black, White, Grey ,customized
	Safety glass	5mm AG front glass
	Installation	Floor stand
	Dimensions	1558485119mm (without stand)	1800530119mm (without stand)	1933605119mm (without stand)	2068681119mm (without stand)	2287804119mm (without stand)	2509929119mm (without stand)	27641067119mm (without stand)
	AC Power Range	100V-240V
Operating Condition	Working Temperature	-20 ~50℃
Operating Condition	Working Humidity	10~100% RH
Feature	On Screen Display	YES: English, etc.
Feature	Power On when plugged in	YES
Built-in Speaker		2 X10W
Accessory	Power Cable	YES
Accessory	Stand	YES
