Specially design for outdoor advertising purpose at drive through ,bus station,airport etc areas.
high brightness optional
IP65
Working Time
Follow your needs
Dust, humidity, rain, external damage etc. are the main factors that affect the service life of digital signage when used outdoors. Kontech’s outdoor digital signage protects your product with a high level of IP65 dust/water protection.
High brightness up to 3000nits, with intelligent light sensor, brightness auto adjusts according to environment light, saving energy.
1500nits
3000nits
Intelligent light sensor, brightness auto adjusts according to environment light, saving energy.
Build in Fan cooling system, no black out under the sun
AR glass is antireflective glass, and AG glass is anti glare glass. As the name implies, AR glass can not only increase the light transmittance, but also reduce the reflectivity. The reflectivity of AG glass is approach 0, which cannot increase the light transmittance. Therefore, in terms of optical parameters, AR glass has more functions to increase light transmittance than AG glass. In terms of optical principle, AR glass is a film that can increase the transmissivity and reduce the reflectivity by adding a layer on the glass surface; AG glass turns reflected light into diffuse reflection. In terms of appearance, AR glass is smooth and transparent, and AG glass is glass with a little frosting effect.
Floor stand / wall mounted / suspended
A variety of installation methods, support custom use
The aluminum housing design makes heat dissipation performance of the product better than that of a metal shell design, and makes the product lighter and easier to install.
The display can be wall-mounted or work with a stand to meet the needs of users in various application scenarios.

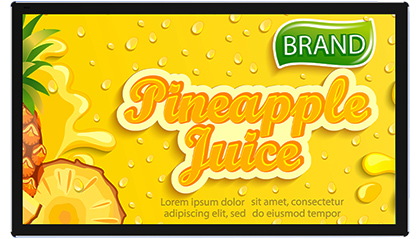

Wall Mount Outdoor
| Model | OD32WAH | OD43WAH | OD49WAH | OD55WAH | OD65WAH | |
| LCD Panel | Screen Diagonal | 32inch | 43inch | 49inch | 55inch | 65inch |
| Resolution (H x V) | 1920×1080 | 1920×1080//3840×2160 | 1920×1080//3840×2160 | 1920×1080//3840×2160 | 3840×2160 | |
| Contrast(Typical) | 3000:1 | 3000:1 | 1200:1 | 3000:1 | 4000:1 | |
| Brightness(Typical) | 1500-3000cd/m2 | 1500-3000cd/m2 | 1500-3000cd/m2 | 1500-3000cd/m2 | 1500-3000cd/m2 | |
| Display Color | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | |
| Response Time(Typical) | 8ms | 6.5ms | 8ms | 6.5ms | 8ms | |
| View Angles LR,UD(CR>10) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Backlight rated hours | ≥50000hours | ≥50000hours | ≥50000hours | ≥50000hours | ≥50000hours | |
| Optional Touch | 10 points capacitive touch | |||||
| System | Android 7.1 | |||||
| Configuration | CPU | ARM Cortex A17 Quad- Core | ||||
| GPU | Mali T764 Quad-Core | |||||
| RAM | 2G DDR | |||||
| ROM | 8GB FLASH | |||||
| LAN | 10/100M | |||||
| Support | microSD/TF card 32GB | |||||
| WIFI | WIFI802.11b/g/n | |||||
| Interface | 1 | 2 xUSB | ||||
| 2 | 1 X HDMI out 1 X HDMI in | |||||
| 3 | 1 X Wifi | |||||
| 4 | 1 X RJ45 | |||||
| 5 | 1 X SD/TF card slot | |||||
| Support | Video | AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG | ||||
| music | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |||||
| photo | JPG、JPEG、BMP、PNG、GIF | |||||
| Cabinet | Material | Aluminum frame +Metal cabinet with outdoor power painting | ||||
| Color | White/Black or customize colour | |||||
| Safety glass | YES, 5mm AG front glass | |||||
| Installation | Wall mount | |||||
| Dimensions | 790*394*158mm (without bracket) | 1031*530*158mm (without bracket) | 1170*605*158mm (without bracket) | 1610*960*200mm (without bracket) | 1850*1150* 200mm (without bracket) | |
| AC Power Range | 100V-240V | |||||
| Operating Condition |
Working Temperature | -20 ~50℃ | ||||
| Working Humidity | 10~100% RH | |||||
| Feature | On Screen Display | YES: English, etc. | ||||
| Power On when plugged in | YES | |||||
| RCT wake up | YES | |||||
| Built-in Speaker | 2 X10W | |||||
| Accessory | Power Cable | YES | ||||
| Wall-mounted bracket | YES | |||||
| Model | OD32WAH | OD43WAH | OD49WAH | OD55WAH | OD65WAH | |
| LCD Panel | Screen Diagonal | 32inch | 43inch | 49inch | 55inch | 65inch |
| Resolution (H x V) | 1920×1080 | 1920×1080//3840×2160 | 1920×1080//3840×2160 | 1920×1080//3840×2160 | 3840×2160 | |
| Contrast(Typical) | 3000:1 | 3000:1 | 1200:1 | 3000:1 | 4000:1 | |
| Brightness(Typical) | 1500-3000cd/m2 | 1500-3000cd/m2 | 1500-3000cd/m2 | 1500-3000cd/m2 | 1500-3000cd/m2 | |
| Display Color | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | |
| Response Time(Typical) | 8ms | 6.5ms | 8ms | 6.5ms | 8ms | |
| View Angles LR,UD(CR>10) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Backlight rated hours | ≥50000hours | ≥50000hours | ≥50000hours | ≥50000hours | ≥50000hours | |
| Optional Touch | 10 points capacitive touch | |||||
| System | Android 7.1 | |||||
| Configuration | CPU | ARM Cortex A17 Quad- Core | ||||
| GPU | Mali T764 Quad-Core | |||||
| RAM | 2G DDR | |||||
| ROM | 8GB FLASH | |||||
| LAN | 10/100M | |||||
| Support | microSD/TF card 32GB | |||||
| WIFI | WIFI802.11b/g/n | |||||
| Interface | 1 | 2 xUSB | ||||
| 2 | 1 X HDMI out 1 X HDMI in | |||||
| 3 | 1 X Wifi | |||||
| 4 | 1 X RJ45 | |||||
| 5 | 1 X SD/TF card slot | |||||
| Support | Video | AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG | ||||
| music | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |||||
| photo | JPG、JPEG、BMP、PNG、GIF | |||||
| Cabinet | Material | Aluminum frame +Metal cabinet with outdoor power painting | ||||
| Color | White/Black or customize colour | |||||
| Safety glass | YES, 5mm AG front glass | |||||
| Installation | Wall mount | |||||
| Dimensions | 790*394*158mm(without bracket) | 1031*530*158mm (without bracket) | 1170*605*158mm (without bracket) | 1610*960*200mm (without bracket) | 1850*1150*200mm (without bracket) | |
| AC Power Range | 100V-240V | |||||
| Operating Condition |
Working Temperature | -20 ~50℃ | ||||
| Working Humidity | 10~100% RH | |||||
| Feature | On Screen Display | YES: English, etc. | ||||
| Power On when plugged in | YES | |||||
| RCT wake up | YES | |||||
| Built-in Speaker | 2 X10W | |||||
| Accessory | Power Cable | YES | ||||
| Wall-mounted bracket | YES | |||||
This borderless product design can be used as a window advertising screen or as a digital menu board, which can be widely used in airports, restaurants, retail stores and other places.
