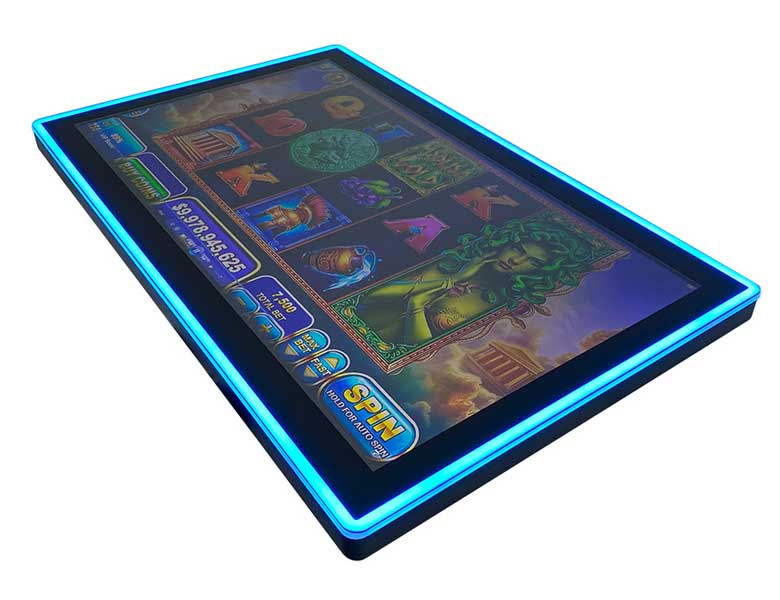

LED Frame Monitor

Widely used for casino slot machines, gaming, signage, kiosks and other public information terminal

  • Industrial grade
  • 10-touch PCAP behind 3mm tempered glass,ultra thin
  • Addressable LED illumination surrounding the display
  • Rigid high-quality PCB-mounted LEDs

Product Features

Touch Optional

10-point projected capacitive multi-touch/ Resistive touch

350nits

high brightness optional

24 / 7

Working  Time

Landscape / Portrait Orientation

Follow your needs

PCAP Touch Technology

Integrated Projected Capacitive (PCAP) Multi-touch, rapid response.
10-touch PCAP behind 3mm tempered glass, ultra thin.

LED- frame Monitor

Kontech led frame monitor has exquisite appearance design and beautiful lines, perfect for your machine

Addressable LED illumination surrounding the Display

High Quality

Rigid high-quality PCB-mounted LEDs, no adhesive strips, no hotspots, no dark corners

178°(H)/178°(V)Viewing Angle

VGA, HDMI interface (DP port optional), USB /RS232 (for touch)

Specifications

Product: Open frame touch monitor with LED decorated
Size Available: 24″/27″/32″/43″
Display Technology: LED
Brightness: 350nit
Resolution: 1920*1080 /3840*2160
Refresh Rate: 60Hz
View Angles: 178°(H)/178°(V)
Aspect Ratio: 16:9
On Screen Display Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru
Support System: Linux/window/Android/Mac
Input/out Port VGA, DVI, HDMI/DP  USB/RS232(for touch only)
Optional Touch interface USB-A/USB-C/RS232
Optional Touch screen: 10-point projected capacitive multi-touch/ Resistive touch
Product: Open frame touch monitor with LED decorated
Size Available: 24″/27″/32″/43″
Display Technology: LED
Brightness: 350nit
Resolution: 1920*1080 /3840*2160
Refresh Rate: 60Hz
View Angles: 178°(H)/178°(V)
Aspect Ratio: 16:9
On Screen Display Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru
Support System: Linux/window/Android/Mac
Input/out Port VGA, DVI, HDMI/DP  USB/RS232(for touch only)
Optional Touch interface USB-A/USB-C/RS232
Optional Touch screen: 10-point projected capacitive multi-touch/ Resistive touch

Application

Widely used for casino slot machines, gaming, signage, kiosks and other public information terminals.
