Outdoor Digital Signage Displays

Outdoor Digital Signage

Built to handle 24/7 continuous operation with IP55-validated dust protection and engineering to prevent damage from overheating, operation of the kontech outdoor display has been made possible in temperatures that range from -20°C to 50°C through a self-cooling system, you’ll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind.

IP55, Waterproof
Landscape / Portrait Orientation
Equipped with industrial parts to support 7/24 operation
Every picture is more immersive with high brightness LCD screen
Optional at Android/Windows/Linux system

4K Resolution, Perfectly Display

The ultra high brightness of the product is originally designed with a storefront window display in mind. The screen projects bright and clear image/video at 4K resolution helps to attract attentions from a distance.

Waterproof Design

Dust, humidity, rain, external damage etc. are the main factors that affect the service life of digital signage when used outdoors. Kontech’s outdoor digital signage protects your product with a high level of IP65 dust/water protection.

Circular polarized outdoor advertising display

IK10 protection

Extremely 4-side Isometric

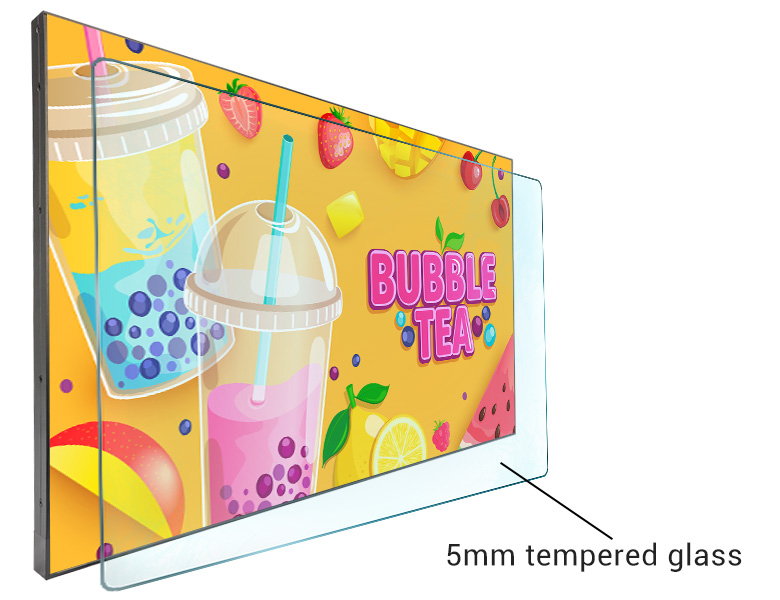

Kontech outdoor display equipped with 5mm tempered glass ,which can protect endurance equivalent to IK10. Safe to be used at public areas.

Operate Reliably In Virtually Any Environment

Excellent Grade for Outdoor Use

Kontech digital signage is highly regarded for its excellent grade for outdoor use,the entirely enclosed design provide a completely sealed entry for liquids and particles, and have withstood the IK10 impact test.

Operate Reliably In Virtually Any Environment

High Brightness Design

When expose to direct sunlight the 2000 nits and higher brightness design brings superb visibility in various lighting environments.

2000 nits

3500 nits

Optional at Android/Windows/Linux system

Specifications

Outdoor Digital Signage

Model		ODF series
Cabinet	Material	Aluminum
	Color	Black
	Safety glass	IK10 anti-glare glasses （AG glass +UV protection)
	Dimensions	762.496456.9mm	994.286582.4mm	1137.886668mm	1262.686733.4mm	1492.586867.5mm	1713.786992mm
	Net.Weight	19kg	25kg	28kg	31kg	38KG	50kg
LCD Panel	Screen Diagonal	32inch	43inch	49″	55inch	65inch	75inch
	Resolution (H x V)	1920*1080	1920*1080	1920*1080	1920×1080	3840×2160	3840×2160
	Contrast(Typical)	1200:1	3000:1	3000:1	1200:1	1200:1	1200:1
	Brightness(Typical)	2000 cd/m2	2500 cd/m2	2500 cd/m2	2500 cd/m2	2500 cd/m2	2500 cd/m2
	Display Color	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8 bits, 16.7M	8bit,1.07G	10 bits, 1.07G
	Response Time(Typical)	15ms	12ms	8ms	8ms	8ms	8ms
	View Angles LR,UD(CR>10)	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°	178°/178°
	Backlight rated hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours	≥50000hours
Bezel ((L/R/T/B))		25.5mm	25.5mm	25.5mm	25.5mm	25.5mm	25.5mm
Vesa		400*400 mm	400*400 mm	400*400 mm	400*400 mm	600*400mm	600*400mm
System	Android 9.0
Configuration	CPU	Cortex-A35*4 Core@2GHz
	GPU	ARM Mali-G31 MP2 800MHz Mali T764 Quad-Core
	RAM	2GB
	ROM	16GB
	LAN	10/100M
	WIFI	IEEE 802.11b/g/n
Interface	1	1x USB 2.0
	2	1x USB 3.0 (5V output)
	3	2 X HDMI in
	4	1 X LAN
	5	1 X Earphone out
	6	1X RS232
	7	1X R/L Audio out
Support	Video	DAT,MPEG,MPG,TS，AVI, MOV, MP4, MKV, TS, M2TS, MTS, M4V, FLV,F4V, PMP，3GP, 3G2, MOV,AVI, MOV, MP4, MKV,, MTS,RM, RMVB
	music	MP2,MP3,WAV,OGG,FLAC ,APE,AAC,M4A,AIF,AIFF,ALAW ,WMA ,ALAC
	photo	JPG, JPEG ,BMP ,JPG,JPEG,PNG
AC Power Range		100-240V AC,50/60HZ
Power consumption		210W	250W	350W	440W	480W	840W
Standby		with RS232 1.5 W , without 0.5W
Operating Condition	Working Temperature	-20 ~50℃
Operating Condition	Working Humidity	10%-100% (IP55)
Feature	On Screen Display	English etc.
	Power On when plugged in	Yes
	RCT wake up	NA
Accessory	Built-in Speaker	NA for standard model ,accept customized design
	Power Cable	1.8 meters
	Wall-mounted bracket	NA

Application

This borderless product design can be used as a window advertising screen or as a digital menu board, which can be widely used in airports, restaurants, retail stores and other places.
