Open Frame Touch Monitor

Kontech’s open frame touch monitors use advanced LED backlight technology, 10-point capacitive touch technology and Infrared Touch technology are optional, compatible with 3M/ELO, energy saving during operation, stable reliability and excellent image clarity , resolution, light transmittance, support multiple installation methods, special customized Open Frame Monitor project can adopt IP65 waterproof and IK10 protection technology. The screen size covers 19 inches to 43 inches, suitable for self-service machines, entertainment venues, retail self-service and industrial automation workshops.

Professional and diverse open frame touch monitor customization
Supports multi-touch, pressure sensitive touch, glove touch, wet hand touch or stylus applications.
Customized services for special application environments, such as outdoor environment, mirror touch, surface treatment, special strengthened glass, low impedance touch sensor, etc.
Customized services for special industrial designs, such as curved touch screens, narrow bezels,
Equal-width borders on four sides, customized Logo, etc.

Highly Sealed And Sturdy Design

Kontech’s Open Frame Monitors are designed to be waterproof, dustproof, and fireproof. With its highly sealed and sturdy design, it can meet the requirements of IP65, making our products have a much longer service life than similar products.

Stable performance. Our open touch monitors are more stable than traditional smart devices. The reason is that the circuit of the industrial tablet computer and the operating device are integrated into one, which makes the overall structure compact and has professional heat dissipation in design. Pay more attention to CPU technology, so that customers have better image performance and lower power consumption.

Our open frame touch monitors are available with Infrared Touch Screen or PCAP Touch Screen

The Infrared Touch Screen relies on the interference of light to register touch points, which can be interacted with using a stylus, gloved finger, or any object and the touch will still be detected. With other touch technologies, this is almost impossible to achieve.

While infrared touch technology is accurate, capacitive touch is more sensitive and accurate in comparison, allowing for greater touch point detection and faster response times. Since PCAP forgoes the use of infrared touch technology transmitter and receiver, it does not require the large bezels of the infrared touch LCD screen, making it slimmer and more stylish. The glass cover of the capacitive screen is extremely durable and scratch-resistant, minimizing maintenance and repairs.

3MM enhanced glass with vandal-proof resistance

Industrial Design with Excellent Durablity

Metal/aluminium housing can be closed or open design.The stable fixing bolts VESA is optional at 75*75/100*100/200*200mm.

ODM at Brightness/inside computer integrated/structure

Offering a customized brightness range from250㎡to 1000㎡or higher.

PC/Android box build-in design for ODM case is supported.

Open Frame Touch Monitor Application Scenario

Industrial Field

In industrial automation, open frame touch monitors for text or graphics to realize information interaction between humans and machines, including industrial automation, machine vision, MES warehousing systems, robots and other equipment. There are also control systems in different industries. Open frame touch monitors are also widely used in the field, medical equipment, environmental protection monitoring, road and bridge control toll systems, communication guarantees, building monitoring and security, etc.

Commercial Field

At present, we also have a large number of open frame touch monitors that are widely used in commercial fields such as buildings, smart homes, outdoor advertising machines, city information management, and hospital information management due to mature touch monitor technology and high reliability.

Open Frame Touch Monitor Application Scenario

Panel Mount/Rear Mount/VESA Mount

china-open-frame-monitor-kontechdisplay1

Specifications

Kontech Open Frame Monitor

Product：	Open frame monitor

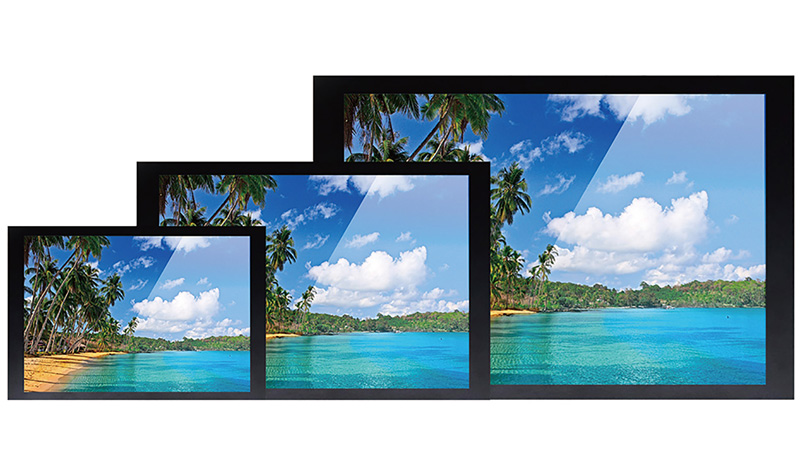

Size Available：	19”/22″/24″/27″/32″/43″
Display Technology：	LED
Brightness：	350nit
Resolution：	19201080 /38402160
Refresh Rate：	60Hz
View Angles：	178°（H)/178°（V）
Aspect Ratio：	16:9
On Screen Display	Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru
Support System：	Linux/window/Android/Mac
Input/out Port	VGA, DVI, HDMI/DP

Need Any Additional Information? Contact Us!

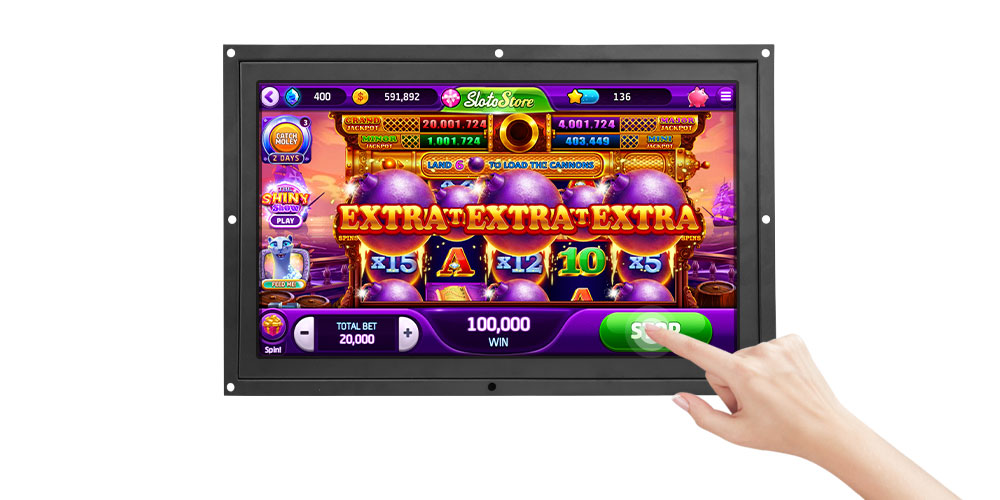

All Open Frame Touch Monitor from KONTECH offer a minimum 12 month warranty (with extended warranty upon request). Our Open Frame Touch Monitor factory has years of experience in embedded gaming, interactive terminals, industrial machines applications, adding real value to our customers’ operations.

KONTECH offers a variety of durable, fast, smooth, and accurate touch and curved screens, including Infrared Touch Screen, Infrared Touch Screen, and open frame monitor. Simply send us a customized data sheet and we can quickly customize a satisfactory solution for you.

QUESTIONS? LET US HELP

Send Us Email

Get A Free Custom Quote

*Why Kontech

With 14+ years ODM/OEM experience, support one-stop solution & has 180+ partners around the world

*Support Customization

Provides professional digital signage and commercial monitor solutions for Gaming & entertainment, Food & drink, Transportation, Healthcare, Fitness and other commercial area

Frequently Asked Questions (FAQ) for KONCETH Monitors

What touch screen technology does KONCETH monitors use?

Most of our touch screens use Projected capacitive (PCAP) technology. We can also produce custom Infra-Red (IR), Resistive touch screen monitors for our customers.

What sizes are available for the KONCETH touch screen LCD monitors?

We currently manufacture sizes ranging from 19 inches to 75 inches in diagonal.

What input options do the LCD monitor’s come with?

The standard touch screen interface is USB with the option of RS232. The video signal inputs can include HDMI, VGA, DVI, with optional Display port.

What operating systems work with KONCETH LCD monitors?

Our monitors are compatible with Windows, Linux, Android, and other proprietary operating systems.

Does KONCETH make custom designs to fit my application?

Yes, we work with our customers to design a perfect and functional product based on their needs. OEM ODM support.

What is the lifespan of a KONCETH touch screen monitor?

Our commercial grade monitors are made to be used 24/7. The half-life ranges from 30,000 to 100,000 light hours.

What is the KONCETH monitor screen resolution?

Touch screen monitors 21.5 inches or larger have a High-Definition Native Resolution of 1920 X 1080 @ 60Hz but other resolutions are available depending on the screen. Typically, 43” and above are 4K 3840 x 2160 pixels.

Is the front surface of industrial panel pc screen vulnerable to scratch?

The hardness of the front surface of the LCD screen is generally Mohs’ 7H (Capacitive Touch), which is not easy to be scratched with sharp tools. Resistive touch is 3H only. If scratched, touch function will be influenced.You can choose to paste tempered glass.

What is the standard KONCETH monitor brightness?

Standard brightness for our LCD panels are around 350 Nits . Higher brightness Nit panels up to 3500 Nits can be specially ordered.

Are KONCETH products IP65 rated?

Yes, we have a wide range of IP65 rated monitors and even IP66 and IP67 are also available

for specific projects you may have.

I don’t see exactly what I need. Do you provide customization?

Yes! We offer a wide range of options to modify or customize any of our monitors to meet your exact needs. This includes video inputs, types of LCD panels, brightness levels, viewing angles, enclosure styles and materials, and much more. We can also private-label your custom design with your own corporate branding.
