Designed for indoor exercise bike and treadmills.
Bluetooth 5.0
Android 10.1
Support Time
The treadmill screen helps to extend your indoor exercise to outdoor immersively.
With the supports of swivel mounts on the bike/treadmills , the screen can be used at landscape or portrait mode as in user’s convenience.
16/17/19/22/24/27/32 Inches are available
FHD 1920*1080P
AI Camera
Heart Rate Measurement over Bluetooth from watches and Heart Rate straps are supported

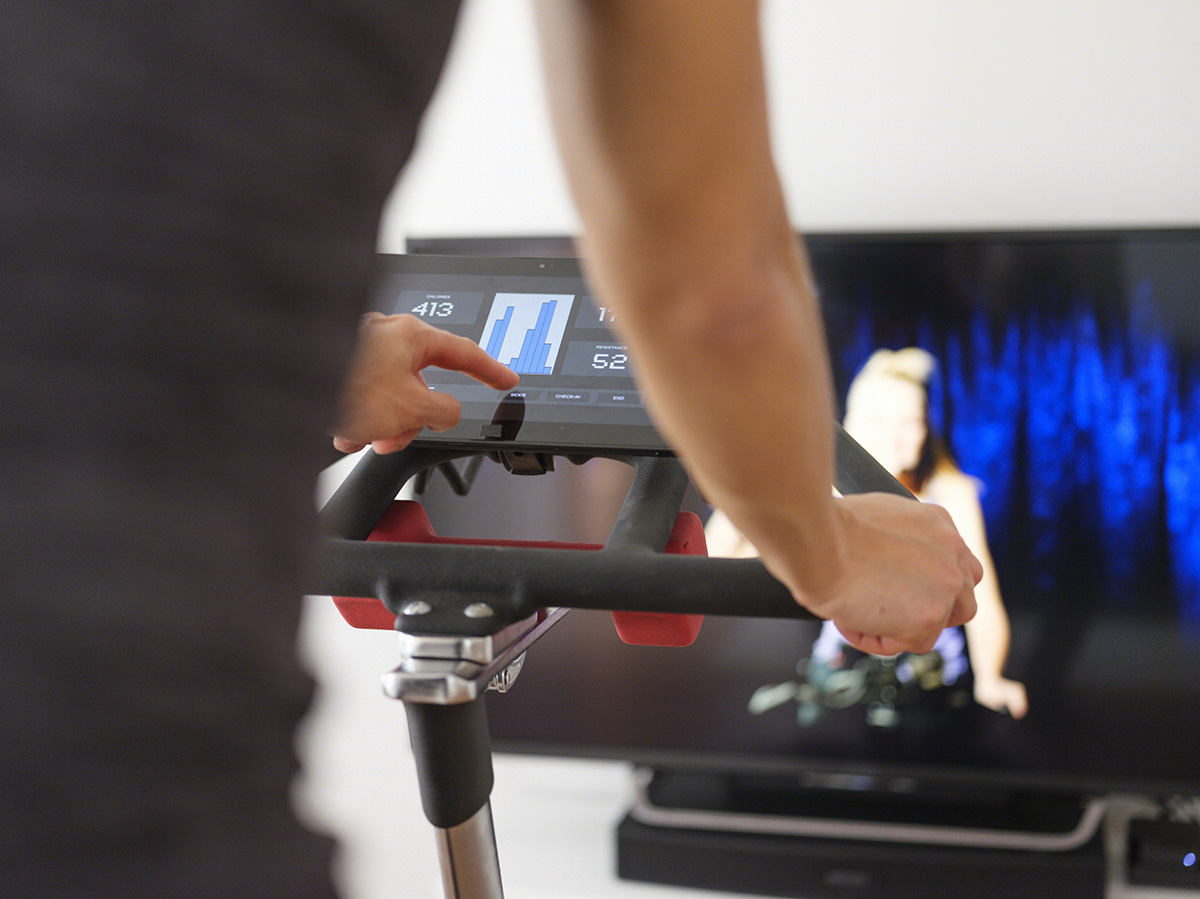

Bike Screen
| Applications | Treadmills, exercise bike | Treadmills, exercise bike | Treadmills, exercise bike | Treadmills, exercise bike |
| Screen size | 18.5″ | 21.5″ | 23.6″ | 31.5″ |
| Dimension | 462*282.5*23.5mm | 540.21*331.67*42.8mm | 595.5*363.1*43.5mm | 763.77*457.21*47.02mm |
| Vesa | 100mm*100mm | 100mm*100mm | 100mm*100mm | 100mm*100mm |
| Main Board | RK3288/RK3399 | RK3288/RK3399 | RK3288/RK3399 | RK3288/RK3399 |
| Android 10.1 | Android 10.1 | Android 10.1 | Android 10.1 | |
| wifi connection | wifi connection | wifi connection | wifi connection | |
| Bluetooth 5.0, suports FTMS protocol | Bluetooth 5.0, suports FTMS protocol | Bluetooth 5.0, suports FTMS protocol | Bluetooth 5.0, suports FTMS protocol | |
| RAM 4G + ROM 64G memory | RAM 4G + ROM 64G memory | RAM 4G + ROM 64G memory | RAM 4G + ROM 64G memory | |
| Panel | 1920×1080(H×V) | 1920×1080(H×V) | 1920×1080(H×V) | 1920×1080(H×V) |
| 400cd/m2 | 400cd/m2 | 400cd/m2 | 400cd/m2 | |
| 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| 8ms | 8ms | 8ms | 8ms | |
| 16.7M | 16.7M | 16.7M | 16.7M | |
| (H) 178°/ (V)178° viewing angle | (H) 178°/ (V)178° viewing angle | (H) 178°/ (V)178° viewing angle | (H) 178°/ (V)178° viewing angle | |
| 16:9 | 16:9 | 16:9 | 16:9 | |
| 10 points capacitive touch | 10 points capacitive touch | 10 points capacitive touch | 10 points capacitive touch | |
| 60Hz refresh rate | 60Hz refresh rate | 60Hz refresh rate | 60Hz refresh rate | |
| I/O Ports | DC 12V | DC 12V | DC 12V | DC 12V |
| USB IN X 2 | USB IN X 2 | USB IN X 2 | USB IN X 2 | |
| HDMI IN X 1 | HDMI IN X 1 | HDMI IN X 1 | HDMI IN X 1 | |
| 3.5mm Headphone X 1 | 3.5mm Headphone X 1 | 3.5mm Headphone X 1 | 3.5mm Headphone X 1 | |
| RJ 45 X 1 | RJ 45 X 1 | RJ 45 X 1 | RJ 45 X 1 | |
| Camera | 5MP | 5MP | 5MP | 5MP |
| Audio | 2X3W output, Microphone in | 2X3W output, Microphone in | 2X3W output, Microphone in | 2X3W output, Microphone in |
| Backlight | LED | LED | LED | LED |
| Heart Rate Measurement | Supports Heart Rate Measurement over Bluetooth from watches and Heart Rate straps (needs customer send APP to test) | |||
| Applications | Treadmills, exercise bike | Treadmills, exercise bike | Treadmills, exercise bike | Treadmills, exercise bike |
| Screen size | 18.5″ | 21.5″ | 23.6″ | 31.5″ |
| Dimension | 462*282.5*23.5mm | 540.21*331.67*42.8mm | 595.5*363.1*43.5mm | 763.77*457.21*47.02mm |
| Vesa | 100mm*100mm | 100mm*100mm | 100mm*100mm | 100mm*100mm |
| Main Board | RK3288/RK3399 | RK3288/RK3399 | RK3288/RK3399 | RK3288/RK3399 |
| Android 10.1 | Android 10.1 | Android 10.1 | Android 10.1 | |
| wifi connection | wifi connection | wifi connection | wifi connection | |
| Bluetooth 5.0, suports FTMS protocol | Bluetooth 5.0, suports FTMS protocol | Bluetooth 5.0, suports FTMS protocol | Bluetooth 5.0, suports FTMS protocol | |
| RAM 4G + ROM 64G memory | RAM 4G + ROM 64G memory | RAM 4G + ROM 64G memory | RAM 4G + ROM 64G memory | |
| Panel | 1920×1080(H×V) | 1920×1080(H×V) | 1920×1080(H×V) | 1920×1080(H×V) |
| 400cd/m2 | 400cd/m2 | 400cd/m2 | 400cd/m2 | |
| 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| 8ms | 8ms | 8ms | 8ms | |
| 16.7M | 16.7M | 16.7M | 16.7M | |
| (H) 178°/ (V)178° viewing angle | (H) 178°/ (V)178° viewing angle | (H) 178°/ (V)178° viewing angle | (H) 178°/ (V)178° viewing angle | |
| 16:9 | 16:9 | 16:9 | 16:9 | |
| 10 points capacitive touch | 10 points capacitive touch | 10 points capacitive touch | 10 points capacitive touch | |
| 60Hz refresh rate | 60Hz refresh rate | 60Hz refresh rate | 60Hz refresh rate | |
| I/O Ports | DC 12V | DC 12V | DC 12V | DC 12V |
| USB IN X 2 | USB IN X 2 | USB IN X 2 | USB IN X 2 | |
| HDMI IN X 1 | HDMI IN X 1 | HDMI IN X 1 | HDMI IN X 1 | |
| 3.5mm Headphone X 1 | 3.5mm Headphone X 1 | 3.5mm Headphone X 1 | 3.5mm Headphone X 1 | |
| RJ 45 X 1 | RJ 45 X 1 | RJ 45 X 1 | RJ 45 X 1 | |
| Camera | 5MP | 5MP | 5MP | 5MP |
| Audio | 2X3W output, Microphone in | 2X3W output, Microphone in | 2X3W output, Microphone in | 2X3W output, Microphone in |
| Backlight | LED | LED | LED | LED |
| Heart Rate Measurement | Supports Heart Rate Measurement over Bluetooth from watches and Heart Rate straps (needs customer send APP to test) | |||
Exercise bike
Working Hours (8:30 AM-12:00 PM Beijing Time)
we will reply within 24 hours
| Product： | window Display/Digital menu board | IP rating | IP55 |
| Size Available： | 43inch,55inch | Operating Life（hours） | 50,000 |
| Display Technology： | LED | Protection Glass： | AG glass |
| Brightness： | 2000 cd/m2-3500 cd/m2 | Bezel: | 4.5mm |
| Resolution： | 1920*1080 (FHD) | Operating Temp： | -20℃-110℃ |
| Refresh Rate： | 60Hz | Installation Method： | wall mounted/floor standing |
| View Angles： | 178°（H)/178°（V） | Product Dimension： | 954.1×31.3×545.1 mm (43”) |
| Aspect Ratio： | 16:9 | 1088.7×31.3×620.3 mm (49″) | |
| RAM/ROM | 2G+8G/Optional at 4+64G | 122.8 x31.3×626.2mm (55″) | |
| OperatingSystem： | Linux/windows/Android | Net Weight: | 6.7 kg (43″) |
| Input/out Port | USB， LAN， HDMI input/output,RS232 etc. | 8.8 kg (49″) | |
| Internet access | Wifi/LAN | 11.2 kg (55”) | |
| Touch screen: | NA | Power Input: | 110-240V AC |
| Product： | window Display/Digital menu board | IP rating | IP55 |
| Size Available： | 65inch,75inch | Operating Life（hours） | 50,000 |
| Display Technology： | LED | Protection Glass： | AG glass |
| Brightness： | 2000 cd/m2-3500 cd/m2 | Bezel: | 4.5mm |
| Resolution： | 3840*2160UHD) | Operating Temp： | -20℃-50℃ |
| Refresh Rate： | 60Hz | Installation Method： | wall mounted/floor standing |
| View Angles： | 178°（H)/178°（V） | Product Dimension： | 954.1×31.3×545.1 mm (43”) |
| Aspect Ratio： | 16:9 | 1088.7×31.3×620.3 mm (49″) | |
| RAM/ROM | 2G+8G/Optional at 4+64G | 122.8 x31.3×626.2mm (55″) | |
| OperatingSystem： | Linux/windows/Android | Net Weight: | 6.7 kg (43″) |
| Input/out Port | USB， LAN， HDMI input/output,RS232 etc. | 8.8 kg (49″) | |
| Internet access | Wifi/LAN | 11.2 kg (55”) | |
| Touch screen: | NA | Power Input: | 110-240V AC |
Android poe tablet
